View MDF File Structure and Metadata Without SQL Server, from the boot page to every table's row count

Someone hands you an .mdf and wants to know what is in it. Which SQL Server wrote it, what the database is called, how many tables it has and how many rows sit in each. Installing SQL Server to answer four questions feels like too much, and attaching the file can change it.

This guide shows where that information lives inside the file and four ways to read it with no server. It starts with the structure, so the numbers make sense, then walks through each method.

How Is an MDF File Built?

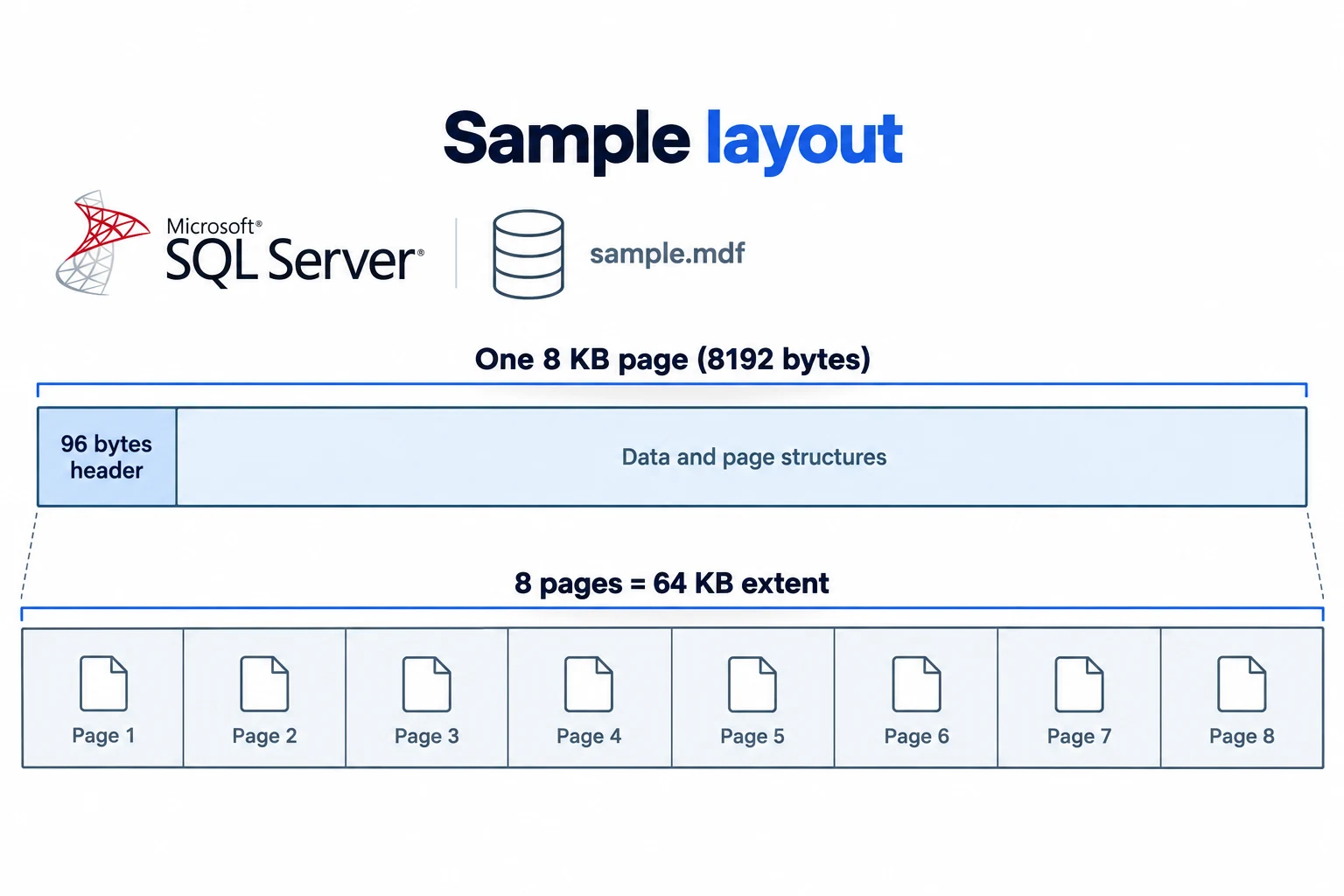

The structure is simpler than the file size suggests. SQL Server writes every data file as a run of 8 KB pages, 8,192 bytes each, numbered from 0. Every page opens with a 96 byte header that records the page number, the page type and which object the page belongs to. The rest of the page holds rows, index entries or allocation bitmaps, depending on the type.

Eight pages make one extent, 64 KB. That grouping is how SQL Server hands out space, and it is why a tiny table still takes at least one page and often a whole extent.

The first pages of the file have fixed jobs, which is what makes the metadata easy to find:

After those come the system base tables. They are ordinary tables that SQL Server keeps for itself. sys.sysschobjs lists every object with its name and type. sys.syscolpars lists every column with its data type. sys.sysidxstats lists the indexes. sys.sysallocunits and sys.sysrowsets tie each table to the pages that hold its rows, and sys.sysobjvalues stores the T-SQL text of views, procedures and functions. A reader that can decode these six tables can rebuild the whole schema from the file alone.

Everything after that is your data: data pages (type 1) for table rows, index pages (type 2) for B-tree indexes, text pages for large values and IAM pages (type 10) that map which extents each table owns.

What Metadata Is Stored in an MDF File?

People say "metadata" and mean four different layers. All four are in the file, and each method below reaches some or all of them.

The version number in the boot page is the one people ask about most, because it decides which SQL Server can attach the file. The lookup is short: 539 is SQL Server 2000, 611 or 612 is 2005, 655 is 2008, 661 is 2008 R2, 706 is 2012, 782 is 2014, 852 is 2016, 869 is 2017, 904 is 2019 and 957 is 2022. The full table, with product and compatibility levels, is in our guide to which SQL Server version wrote an MDF file.

Which Way Should You Read an MDF File?

Four methods work without SQL Server. They differ in how deep they go and who they suit.

The last row is there for honesty. Express and LocalDB are free, but they are SQL Server. Attaching a file to a newer version upgrades it in place, so a file from 2012 attached to 2022 can no longer go back. Every other method opens the file read only.

How Do You Open an MDF File on Windows?

Univik MDF Viewer reads the pages itself, decodes the system tables and shows the result as a schema tree. Nothing is attached, no service runs and the file is not written to. It reads files from SQL Server 2000 through 2025, including detached and orphaned files. It can also open a file that SQL Server has marked suspect and read what is still intact.

Univik MDF File Converter · The database facts read from the fileScreenshot 1 of 2

Swipe sideways to see the whole screen

The facts you came for, on one screenDelivery.mdf opened with no server: the database name, the SQL Server 2000 version stamp read from the boot page, 11 tables, 266.5K records and the 22.1 MB file size. Each table shows its row count, and six rows in Addresss are flagged as deleted.

Univik MDF File Converter · Rows read from a tableScreenshot 2 of 2

Swipe sideways to see the whole screen

Inside one tableThe Addresss table read straight from the pages: 6,289 records, the column names from sys.syscolpars and the rows paged 500 at a time. The search box filters on any column without a query.

How Do You View an MDF File in a Browser?

On a Mac, a Linux machine, a locked down work PC or a phone, the Univik Online MDF Viewer does the same reading inside the browser tab. Pick the .mdf, and the page reads its 8 KB pages from your disk, decodes the system catalog and lists the tables, views and stored procedures with their rows. Nothing is uploaded, which is the difference from other online MDF tools that send the file to a server and attach it there.

It handles SQL Server 2000 to 2025 files, row and page compression and multi file databases when you add the .ndf files. Open the page, then go offline. It still works, so it is safe for customer data and case evidence.

How Do You Read the MDF Version in a Hex Editor?

When the only question is "which SQL Server wrote this", you do not need a reader at all. The internal version sits 100 bytes into the boot page. Page 9 starts at 9 times 8,192 bytes, so the version is at file offset 0x12064. Open the file in HxD or any hex editor, jump to that offset and read two bytes.

The bytes are little endian, so 1B 02 becomes 0x021B, which is 539. PowerShell does the same read in one line and prints the number:

# Windows PowerShell 5.1
$b = Get-Content -Encoding Byte 'C:\Data\Delivery.mdf' -ReadCount 0 |
     Select-Object -Skip 0x12064 -First 2
$b[1] * 256 + $b[0]

# PowerShell 7
$b = Get-Content -AsByteStream 'C:\Data\Delivery.mdf' -ReadCount 0 |
     Select-Object -Skip 0x12064 -First 2
$b[1] * 256 + $b[0]

The database name is on the same page, stored as Unicode, so it appears in the text column with a 00 byte after each letter. That is as far as a hex editor comfortably goes. The table list lives in binary rows spread over many pages, and decoding those by hand is a project, not a check.

How Do Developers Read an MDF File With OrcaMDF?

OrcaMDF is an open source C# parser for MDF files written by Mark S. Rasmussen, released under GPL v3. Its RawDatabase class opens a file and hands you any page by file ID and page number, with the header fields decoded: page type, object ID, free byte count and slot count. Because it does not trust the metadata to be intact, it is the tool people reach for on a damaged file, where you filter data pages by object ID and parse the rows with a column layout you supply.

var db = new RawDatabase(@"C:\Data\Delivery.mdf");
var boot = db.GetPage(1, 9);        // the boot page
var objects = db.Pages
    .Where(p => p.Header.Type == PageType.Data && p.Header.ObjectID == 34); // sys.sysschobjs

It fully supports SQL Server 2005 through 2012 and mostly works on later files, though those are not tested by the author. It is read only. If you want the schema without writing code, the two viewers above already do the decoding.

What Can You Not See in an MDF File Without a Server?

Three things stay out of reach. A database protected with Transparent Data Encryption stores every page encrypted, so no file reader can show its tables without the certificate. The transaction log in the .ldf is a different format and holds no tables, though a log reader can show what changed. And if the boot page itself is damaged, nothing that relies on it will open the file, which is when a repair tool that rebuilds the structure from the page chains, such as Univik SQL Database Recovery, is the way in.

One more thing to check first: the .mdf extension is shared by Alcohol 120% disc images and ASAM measurement files. If the file did not come from a database server and has no .ldf beside it, our guide to opening an MDF file without SQL Server shows how to tell them apart.

Get the free Univik MDF Viewer

MDF Structure and Metadata Questions

About This Guide

Written and maintained by Leena Taylor Paul and the Univik team, developers of Windows data conversion and recovery software since 2013. The page layout, boot page fields and version offset were checked against Microsoft's documentation and the sources below. The screens on this page come from a real 22.1 MB SQL Server 2000 database, Delivery.mdf, with 11 tables and 266,500 rows, read by the Univik file reader with no attach. Last verified September 20, 2026. Need a hand? Contact our support team.

Sources checked: Microsoft Learn: Pages and Extents Architecture Guide · Paul Randal: Boot pages and boot page corruption · Remus Rusanu: Determine the database version of an MDF file · Anthony Nocentino: Reading SQL Server file headers · Mark S. Rasmussen: OrcaMDF RawDatabase · Univik MDF Viewer
